5G Sub-6 Outdoor CPE

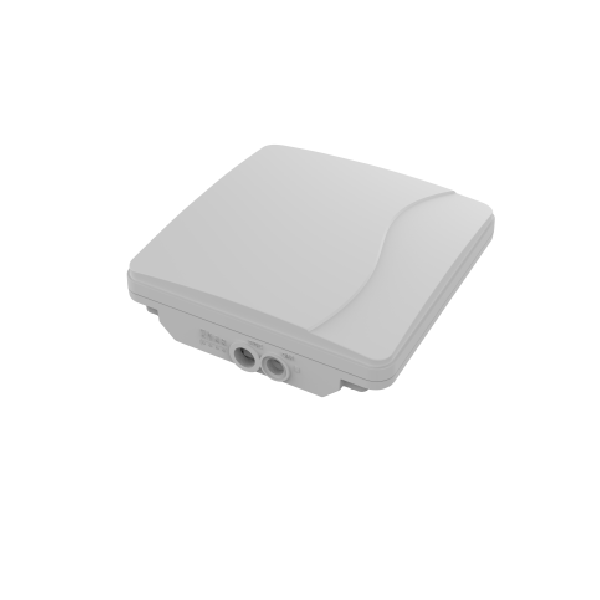

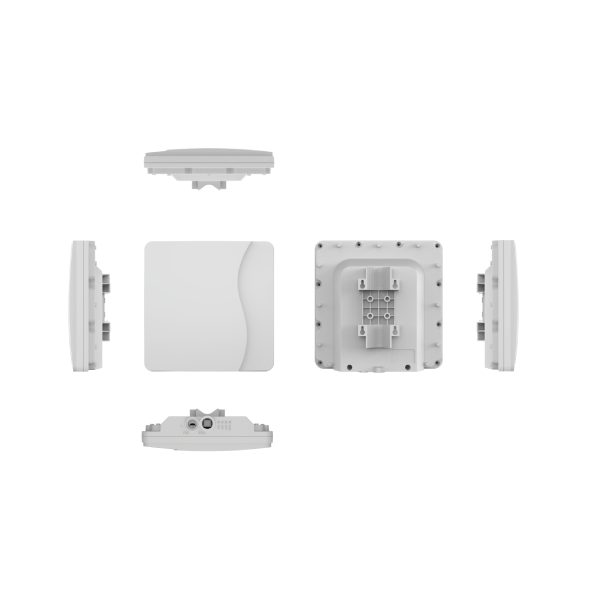

The CPX80P from BTI WIRELESS is an Outdoor 5G CPE, supporting various 4G/5G spectrums and provides ultra-high speed experience. It has built-in high-gain directional antennas to expand the signal coverage. The CPX80P ensures quality of wireless communication for various outdoor environments in an IP67 enclosure, protecting it from water, vibration, shock, and lightning.

Applications:
5G

Outdoor Scenario

Private Network

Superb Performance

Gigabit-level broadband wireless access, high-speed data transmission.

Customization

Support customization to meet your various needs.

Security

Security firewall, Mac/IP/URL filtering.

Smart Management

Web, TR069 & SNMP based device management

Key Features

Specifications

Files

Frequency Bands

- 2 SKUs support global mainstream 5G/4G frequency bands

Key Features and Highlights

- Qualcomm SDX62 chip solution
- 5G NR and LTE-A CAT20 dual mode
- Supports both SA and NSA
- Supports POE power supply, comply to 802.3at
- Powerful software features, supporting all router features
- Supports Web, TR069 and SNMP based device management
- IP67 water and dust proof

- Built-in high-gain antennas

Specification

Item	5G Sub-6 Outdoor CPE - CPX80P
Technology	5GNR/LTE/WCDMA
TRx Configuration	2T4R
Frequency Bands A2 Verion	5GNR	N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N75/N76/N77/N78
	LTE	B1/B3/B5/B7/B8/B20/B28/B32/B38/B40/B41/B42/B43
	WCDMA	B1/B5/B8
Frequency Bands B2 Verion	5GNR	N2/N5/N7/N12/N13/N14/N25/N26/N29/N30/N38/N41/N48/N66/N70/N71 /N77/N78
	LTE	B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B29/B30/B38/B41/B42/B43 /B46 (LAA) /B48/B66/B71
External Port	1 x RJ45 2.5Gigabit Ethernet port 1 x SIM Slot (2FF)
Antenna	4 built-in directional high-gain antennas for cellular
LED	1 x power indicator 1 x network status indicator 1 x tri-color signal strength indicators 1 x SIM status indicator
Power Supply	POE 24V/ 48V DC (IEEE802.3 optional)
Dimension (H x W x D)	288 x 288 x 82 mm \| 11.34 x 11.34 x 3.23 in
Weight	< 2 kg \| 4.41 lbs
Ingress Protection	IP67
